# Creation of an SVN Branch

### Creation of SVN Branch <a href="#creation-of-svn-branch" id="creation-of-svn-branch"></a>

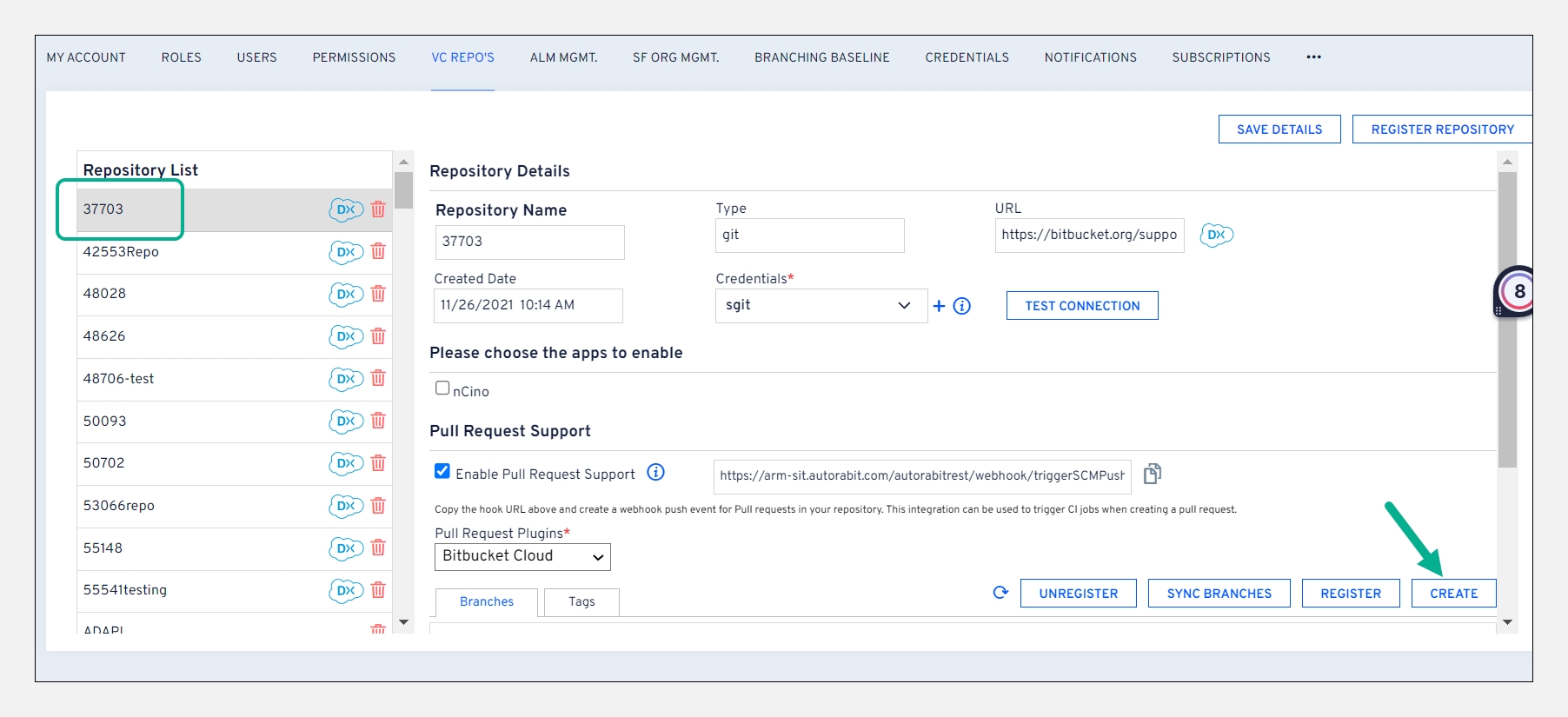

1. Log in to your ARM account.
2. Go to the **`VC Repo's`** tab.
3. Select the SVN repository for which the branch needs to be created.
4. Click on **`Create`** button.<br>

   <figure><img src="https://cdn.document360.io/8711f4e7-c040-4616-aac9-d947f87e4619/Images/Documentation/image-1677740889482.png" alt=""><figcaption></figcaption></figure>

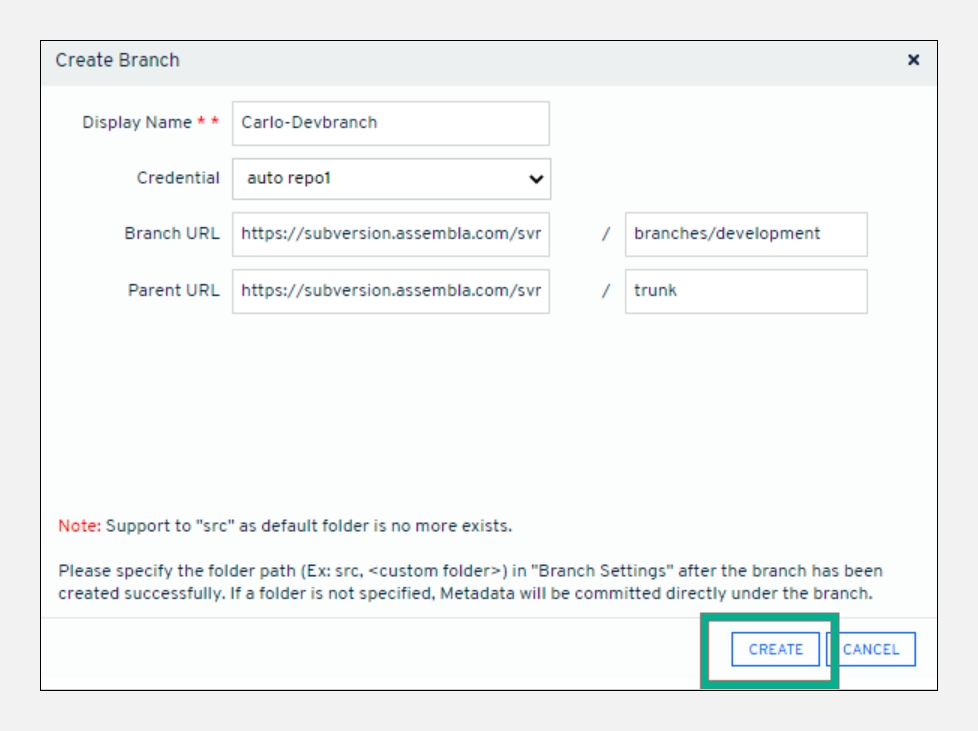

5. In the **`Create Branch`** screen, give the branch a name in the **`Display Name`** field.Point to Note:The characters **"//" \ , \* ? & ' " < > | \` \~ ( )** and **space** are not allowed in the **`Display Name`** field.
6. Select your **`Credential`** from the drop-down field.
7. In the **`Branch URL`** field, enter the branch name beside the parent branch. ***For example,*** *branches/Development*.
8. **`Parent URL`** is auto-filled; however, you can modify it (if necessary).&#x20;
9. Click **`Create`** to complete the creation process.<br>

   <figure><img src="https://cdn.document360.io/8711f4e7-c040-4616-aac9-d947f87e4619/Images/Documentation/image-1677741239425.png" alt="" width="375"><figcaption></figcaption></figure>

### Registration of an existing SVN branch <a href="#registration-of-an-existing-svn-branch" id="registration-of-an-existing-svn-branch"></a>

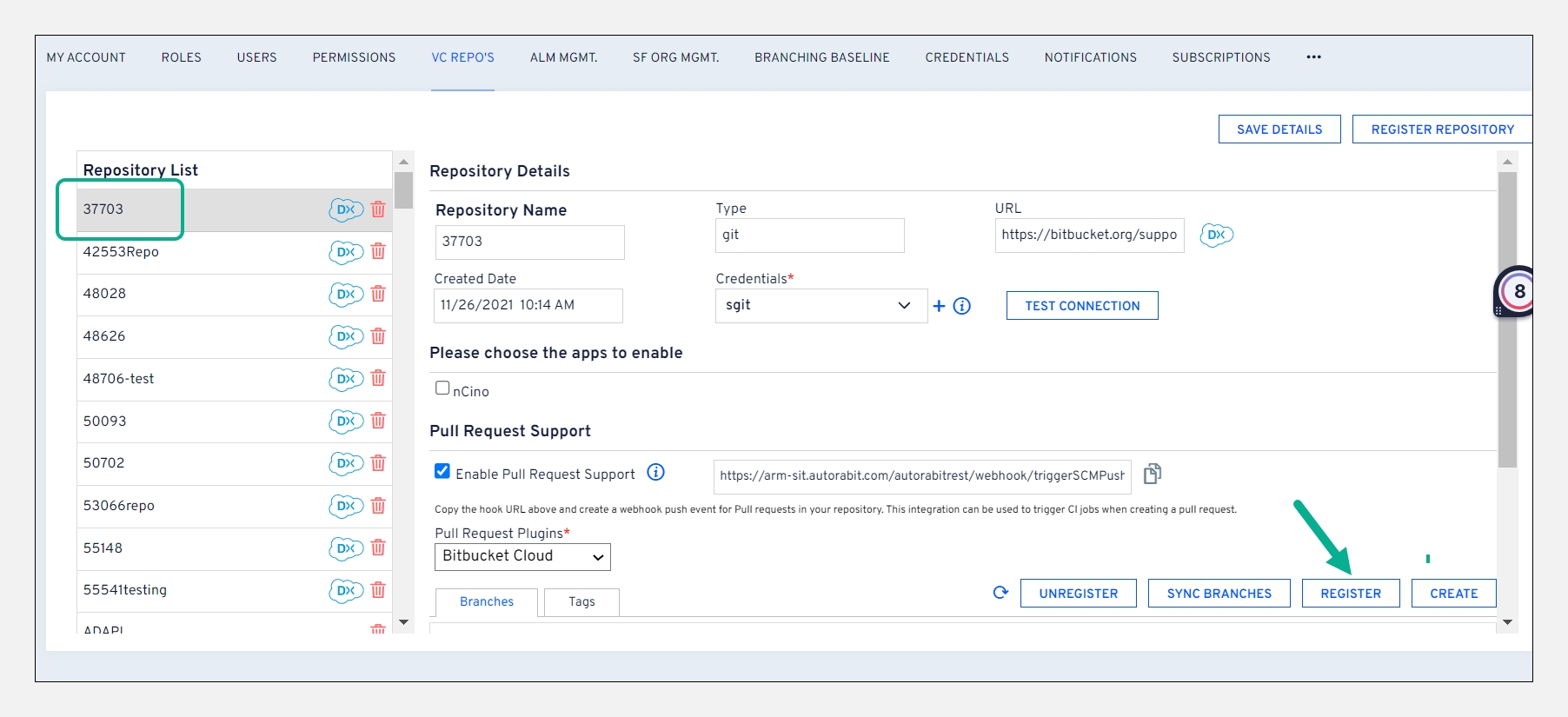

1. On the **`VC Repo's`** page, select one SVN repository from the **`Repository List`**.<br>

   <figure><img src="https://cdn.document360.io/8711f4e7-c040-4616-aac9-d947f87e4619/Images/Documentation/image-1677740959030.png" alt=""><figcaption></figcaption></figure>
2. Click **`Register`**.

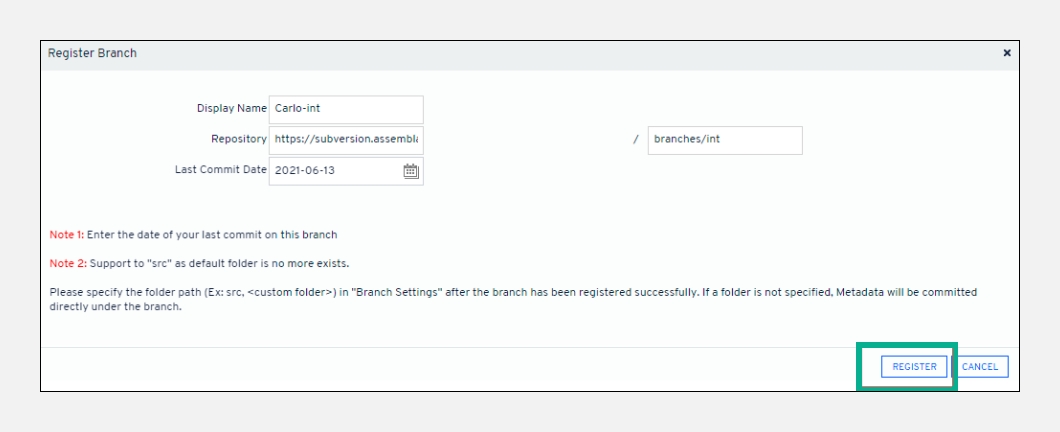

3. On the next screen, enter the **branch name** you want to register in ARM.Point to Note:The characters **"//" \ , \* ? & ' " < > | \` \~ ( )** and **space** are not allowed in the **`Display Name`** field.
4. The **`Repository`** field is auto-filled with the repository root. Give a branch name beside the parent branch. ***For example,*** *branches/Integration*.
5. Select the **`Last Commit Date`**. The last commit date fetches changes from Salesforce org in EZ-Commit based on the specified date.
6. Click **`Register`** to complete the registration of the branch.<br>

   <figure><img src="https://cdn.document360.io/8711f4e7-c040-4616-aac9-d947f87e4619/Images/Documentation/image-1677741338967.png" alt=""><figcaption></figcaption></figure>
